Products - HDX High Density Sponge Drill

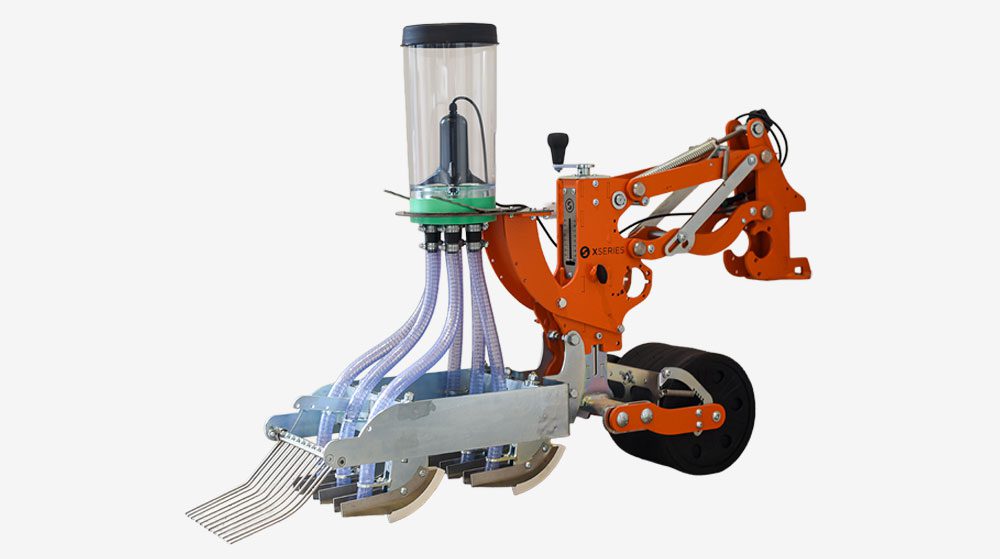

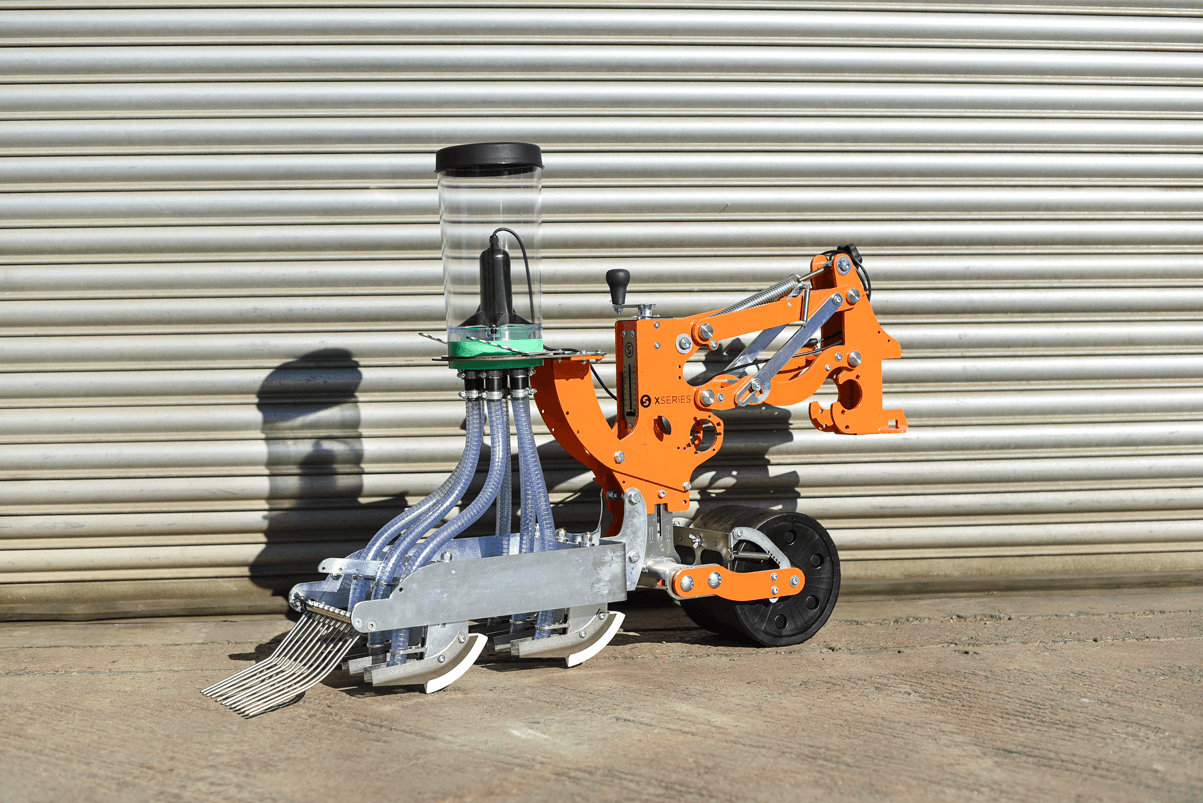

A modular high density seed drill. It utilises a sponge metering system to deliver accurate high rate application of a variety of small seed types alongside a chassis and coulter system to ensure even depth and seed coverage across the width of the bed for ultimate uniformity of the crop in a variety of ground conditions.
DISCOVER THE FEATURES OF THE HDX
2–9 outlets from each meter. Extra wide outlets to prevent blockage on larger seed types. Fast to change between seed types.
Single pipe delivery into the soil to prevent changes of diameter and potential seed blockage. Space for a second feed into coulter for increased rate or additional product.
Central electric motor drive can power up to 8 seed meters and keeps rate constant regardless of forward speed
Just some of the seeds you can handle are listed below:
Lettuce, Wild Rocket, Spinach, Valerian, Bok Choy, Japanese Mustard, Basil, Coriander, Parsley, Chicory, Dill, Red Chard, Black Cabbage
For the HDX MACHINE LAYOUT POSSIBILITIES & KEY LAYOUT TERMINOLOGY - PLEASE SEE PDF DOWNLOAD (BELOW)

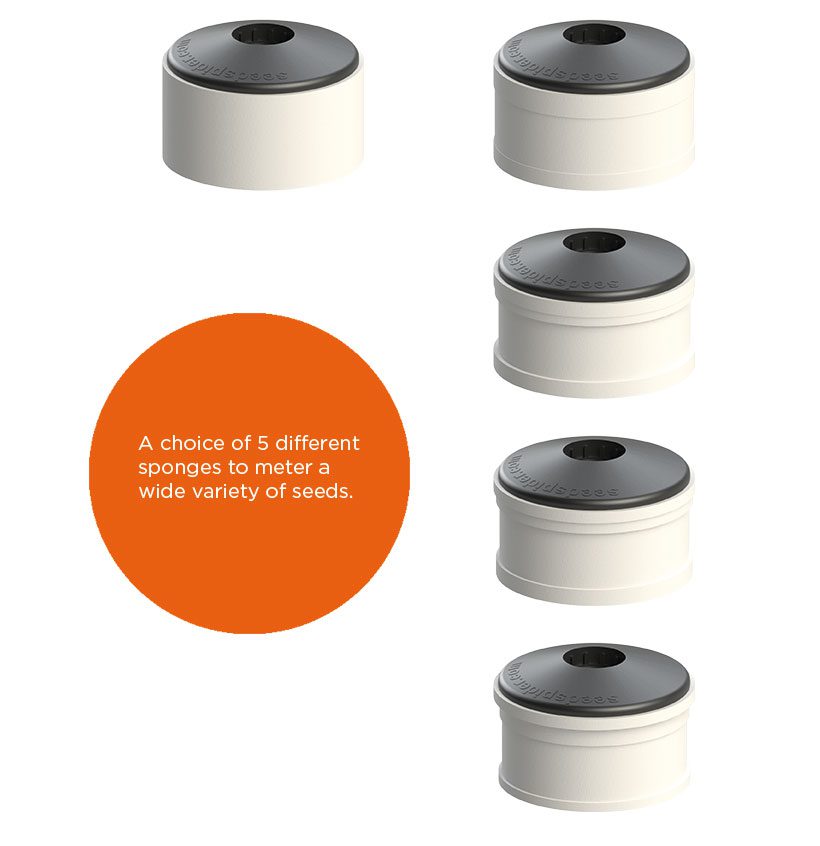

THE METERING UNIT
A robust and versatile sponge metering unit ideally suited to accurate rate applications of high density crops.
HDX - Technical Specification

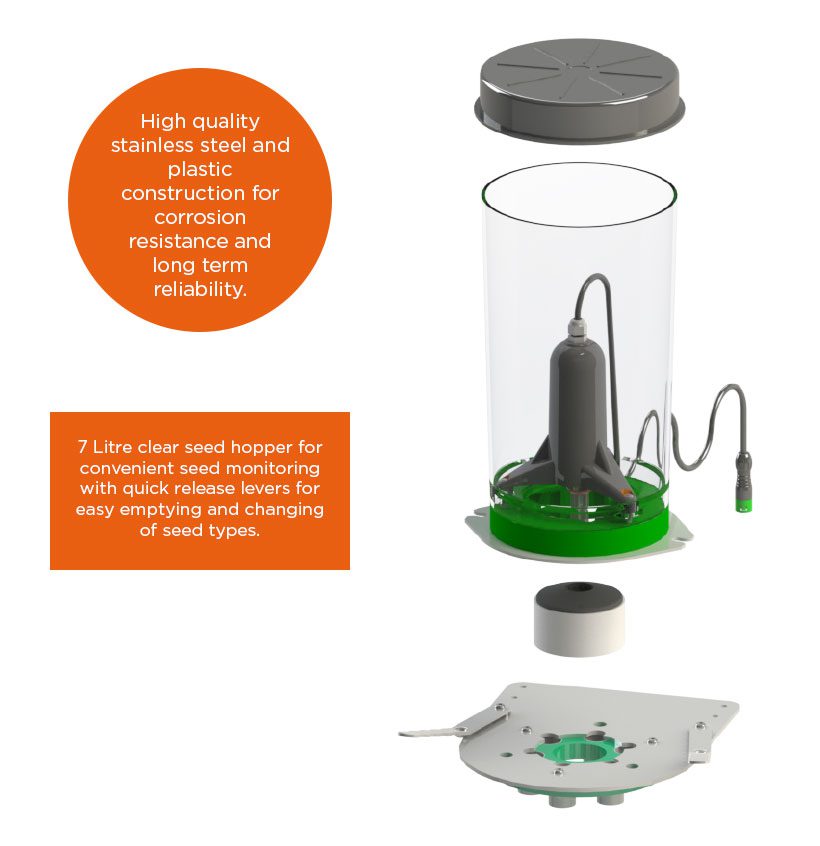

| Hopper Capacity (L) | 16L per hopper |
|---|---|
| Approx Row Unit Weight (kg) | 50kg |
| Row Unit Length | 1000mm |
| Depth Control Range | 90mm |
| Coverer Options | Tine rake |

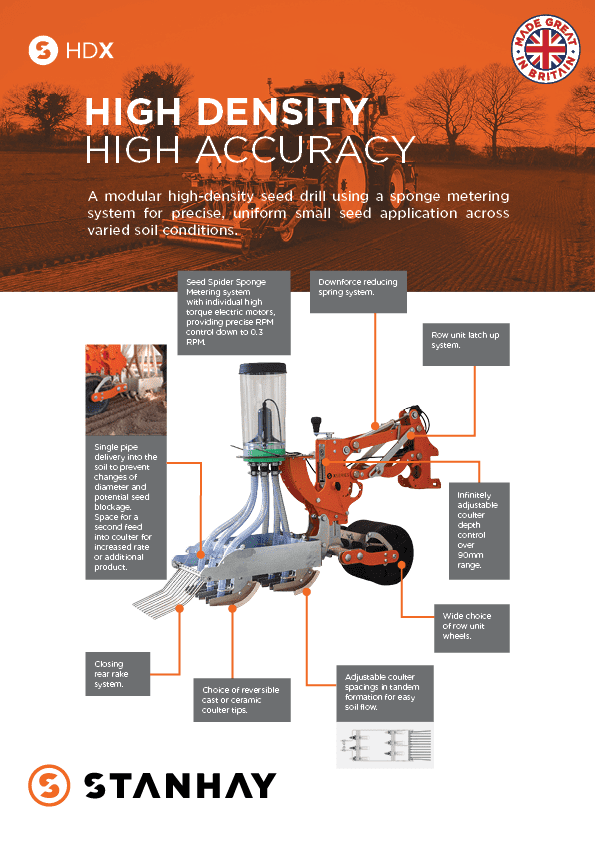

FURTHER INFORMATION ON OUR HDX CAN BE FOUND IN OUR PRODUCT GUIDE BELOW
